Aluminium FACADES

Highend Aluminium Window System

Aluminium FACADES

Keep walls and facades looking great and lasting long while meeting high industry standards for durability and aesthetics.
Together we can:
Deliver dispersion-based and cementitious systems for manufacturers of EIFS/ETICS and renders Enhance longevity and aesthetics of energy-efficient facade systems with acrylic emulsion polymers and silicone materials designed to enhance UV resistance and color protection and deliver reliable protection from water intrusion and mechanical impact



3


Boost the performance and efficiency of interior and exterior renders with weather resistance and on-site workability to help end-users drive down application time and minimize issues such as cracking
Increase performance of cement-based renders with cellulose ethers that support air void stability, good workability, temperature tolerance and minimal retardation


Ease workability, increase efficiency and improve abrasion resistance and surface appearance with a wide range of materials for gypsum-based applications
Improve adhesion and strength for fiber cement applications with acrylic emulsion binders and additives for facade panels, and silicone hydrophobers for coated and uncoated substrates

  • TROP TEC SC 50.NI
    Description

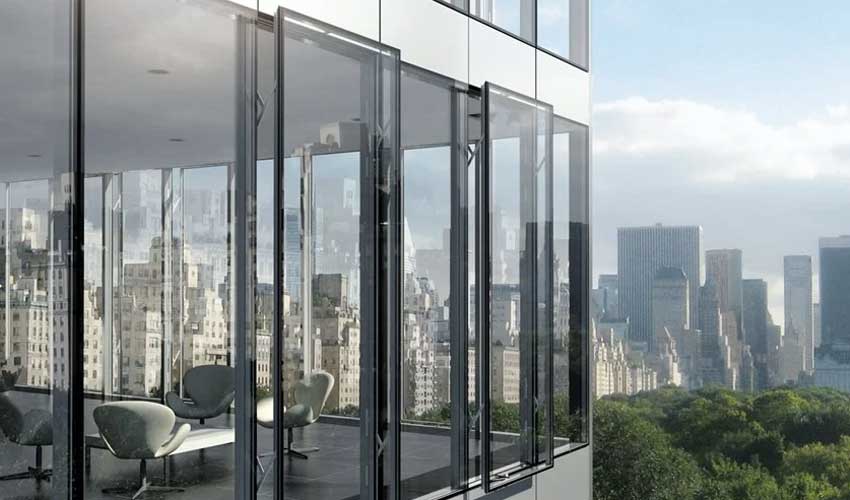

    The TropTec SC 50.NI aluminium facade system provides a versatile mullion / transom constructions that combines flexibility and efficient fabrication with a stylish design offering an eye-catching framed look of the facade. An all-glass look is possible with the SG option (TropTec 50 SG.NI). The aluminium facade has been specifically developed to meet the requirements of markets with tropical climates, which makes it perfect in regions with high wind loads and torrential rain. Compatible with Schüco TropTec façade insert units Two different outward-opening, projected top-hung windows can fulfill almost every requirement of any façade project: The Schüco TropTec AW 48.NI insert unit provides a good basis for standard sizes with common fittings whereas the Schüco TropTec AW 58.NI is perfectly suitable for sophisticated façade projects with highest demands.

    3

    Benefits
    Non-insulated aluminium mullion/transom façade system with horizontal and vertical cover caps
    Exclusive design due to minimal face widths of 50 mm and straightforward profi le geometries
    System solution for large dimensions and glass loads up to 300 kg
    Fully suitable façade attachment solution
    Reliablity and water tightness (720 Pa) due to overlapping drainage principle and three drainage levels
    Convincing structural performance levels due to high wind load resistance (2650 Pa)
    Good airborne sound insulation with standard insulating glass
  • TROP TEC SC 50 SG.NI
    Description
    The Schüco TropTec SC 50 SG.NI structural glazing aluminium façade system can convince with its outstanding design offering an all-glass look on the outside with slender profiles of only 50 mm on the inside. The highly resilient mullion/transom construction combines energy efficency, flexibility and efficient fabrication. The special requirements of markets with tropical climates have been incorporated into the structural glazing façade system, which makes it perfect in regions with high wind loads and torrential rain. Compatible with Schüco TropTec façade insert units Two different outward-opening, projected top-hung windows can fulfil almost every requirement of any façade project: The Schüco TropTec AW 48.NI insert unit provides a good basis for standard sizes with common fittings whereas the Schüco TropTec AW 58.NI is perfectly suitable for sophisticated façade projects with highest demands.

    3

    Benefits
    Non-insulated all-glass aluminium mullion/transom façade system
    Exclusive design due to minimal face widths of 50 mm and straightforward profile geometries
    Intelligent glass fi xing cleats without strctural bonding on-site
    System solution for large dimensions and glass loads up to 300 kg in ground floor
    Fully suitable façade attachment solution
    Reliablity and water tightness (720 Pa) due to overlapping drainage principle
    and three drainage levels Convincing structural performance levels due to high wind load resistance (2650 Pa)
    Good airborne sound insulation with standard insulating glass
